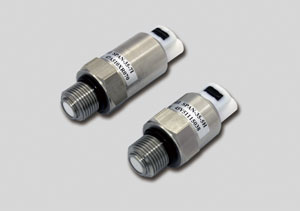

Can be used in environments where high-frequency noise occurs.
・Insulation separation structure is adopted in the sensor case.
・High output and high reliability achieved through combination of
metal diaphragm and thin film gauge.
・High insulation.
・Wide operating temperature range.
・Small size.

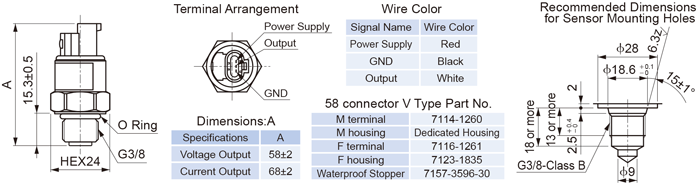

Unit:mm
| Model No. | SPAN-○○-△□ |
|---|---|
| Rated Pressure | 5 ・ 10 ・ 20 ・ 35 ・ 50 MPa |
| Overload | 150%FS |
| Total Accuracy | ±1.0%FS or less |
| Operating Temperature range | -40～+120 °C (at DC 5V) |
| Compensation Temperature range | -20～+85 °C |
| Power Supply | DC 5V ・ 12V ・ 24V ・ 8~35V |
| Output | 0.5～4.5V ・ 1～5V ・ 4～20mA |
| Zero temperature Characteristics | Within ±0.025%FS/°C |
| Span temperature Characteristics | Within ±0.025%FS/°C |
| Response Time | 2 ms or less |
| Weight | About 60 g |
| IP Protection Rating | IP67 equivalent |

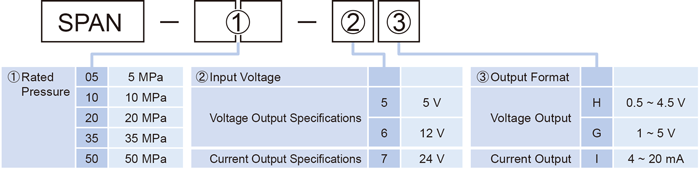

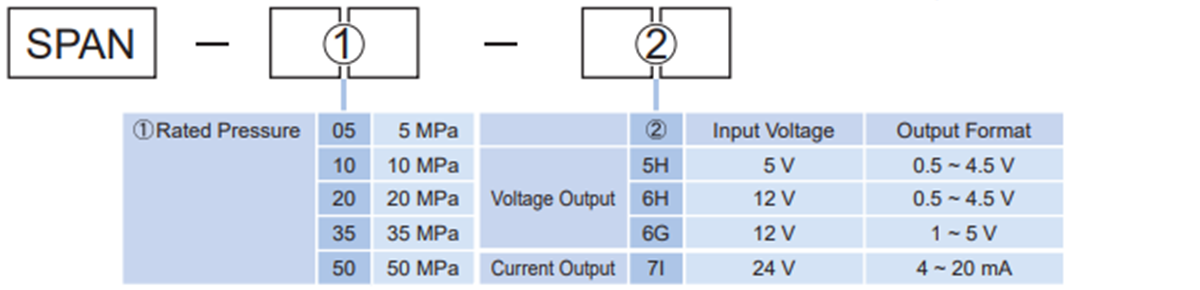

Ex.1) 10 MPa . Input Voltage 12 V . Voltage Output (0.5 to 4.5 V) → SPAN-10-6H
Ex.2) 35 MPa . Free Power Supply 24 V . Voltage Output (0.5 to 4.5 V) → SPAN-35-0H
Ex.3) 50 MPa . I nput Voltage 24 V . Current Output→ SPAN-50-7I → SPAN-50-7I
Ex.4) 5 MPa . Free Power Supply and Voltage Output (1 to 5 V) → SPAN-05-0G
Specifications of products are subject to change without notice.
